Standing Seam

1.5” Nail Strip

• Install Level of Difficulty: Novice**
• Available Gauges: 24 & 26
• Panel Coverage: 14.6875” & 18.6875”
• Seam Height: 1.5”
• Minimum Slope: 3:12
• Concealed Clip: No Clip (Rollformed in Panel)
• Substrate: Solid Substrate

• Testing:

UL 580 Class 90 Wind Uplift Rating
UL 2218 Class 4 Impact Rating
UL 790 Class A Fire Rating
**Testing for 24 Gauge Only**

1.75” Snap Lock

• Install Level of Difficulty: Intermediate**
• Available Gauges: 22, 24 & 26
• Panel Coverage: 13.875” & 17.875”
• Seam Height: 1.75”
• Concealed Clip: Required
• Substrate: Solid Substrate & Open Framing (Purlins)
• Testing:

UL 580 Class 90 Wind Uplift Rating
UL 2218 Class 4 Impact Rating
UL 790 Class A Fire Rating
**Testing for 24 Gauge Only**

2” Mechanical

• Install Level of Difficulty: Expert**
• Available Gauges: 22, 24 & 26
• Panel Coverage: 14.1875” & 18.1875”
• Seam Height: 2”
• Minimum Slope: .5:12
• Concealed Clip: Required
• Substrate: Open Framing (Purlins) & Solid Substrate
• Testing:

UL 580 Class 90 Wind Uplift Rating
UL 2218 Class 4 Impact Rating
UL 790 Class A Fire Rating
**Testing for 24 Gauge Only**

1” Nail Strip

• Install Level of Difficulty: Novice**
• Available Gauges: 24 & 26
• Panel Coverage: 11.9375”, 15.9375” & 19.9375”
• Seam Height: 1”
• Concealed Clip: No Clip (Rollformed in Panel)
• Substrate: Solid Substrate
• Testing: N/A

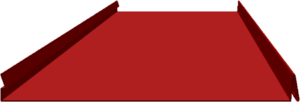

1.5” Snap Lock

• Install Level of Difficulty: Intermediate**
• Available Gauges: 24 & 26
• Panel Coverage: 15.875” & 19.875”
• Seam Height: 1.5”
• Minimum Slope: 3:12
• Concealed Clip: Required
• Substrate: Solid Substrate
• Testing: N/A

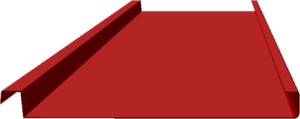

1.5” Mechanical

• Install Level of Difficulty: Expert**
• Available Gauges: 22, 24, & 26
• Panel Coverage: 12”, 16” & 20”
• Seam Height: 1.5”
• Minimum Slope: 2:12
• Concealed Clip: Required
• Substrate: Solid Decking
• Testing: N/A
• Special Notes: Radius Panels Available
