7.2 Ultra Box
7.2 Ultra Box

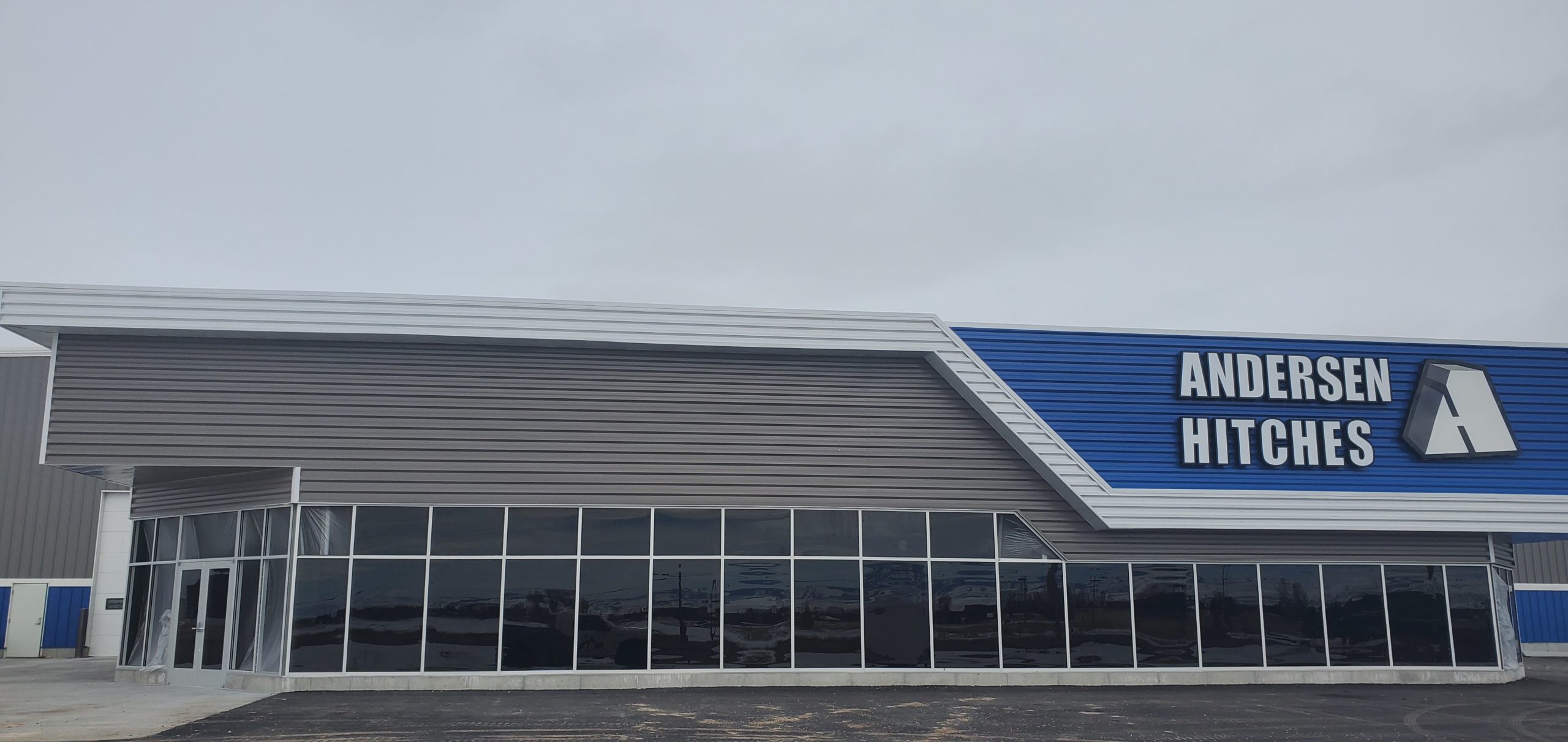

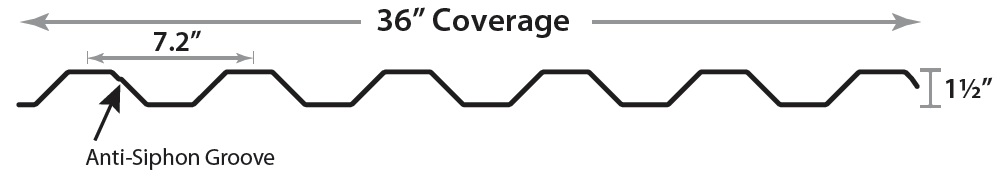

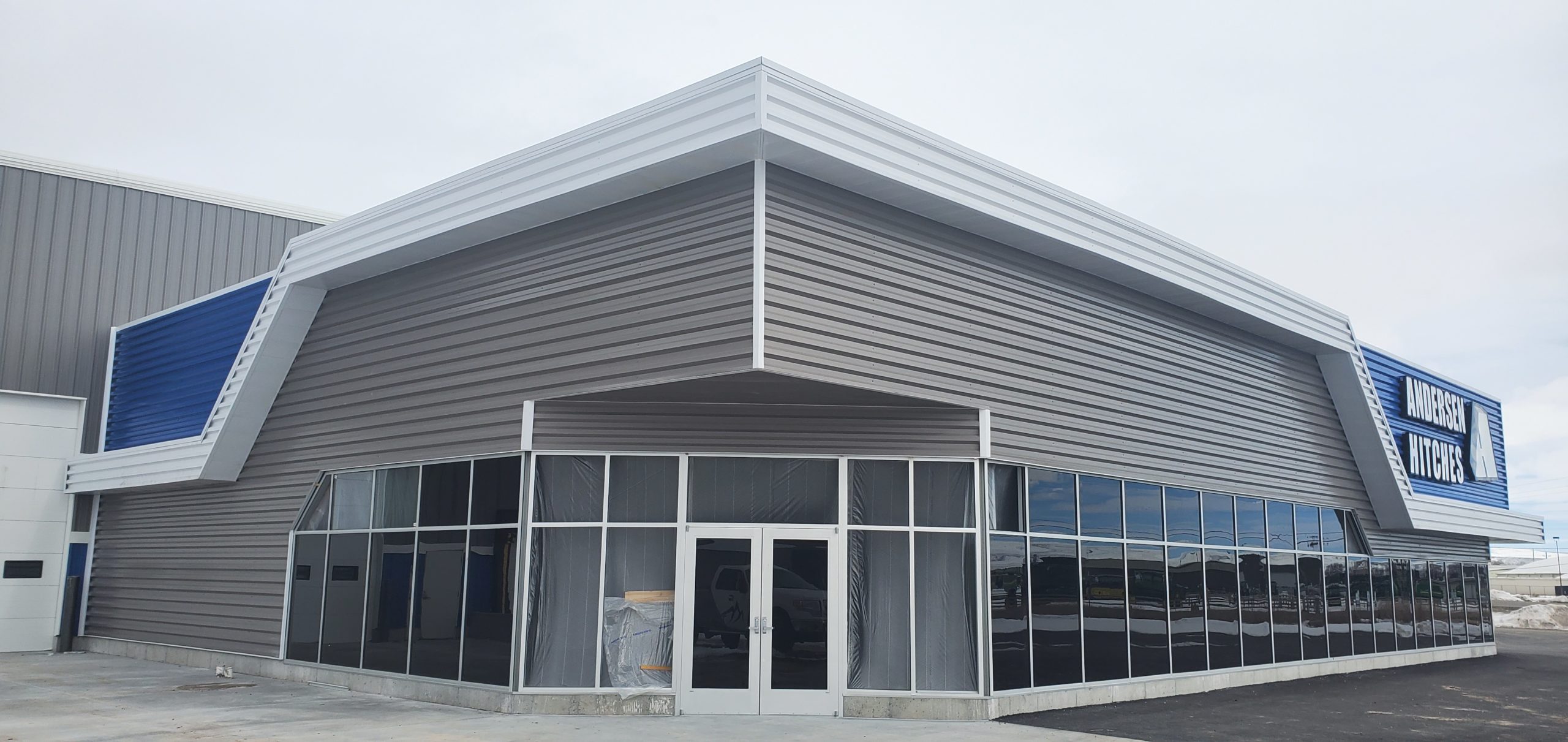

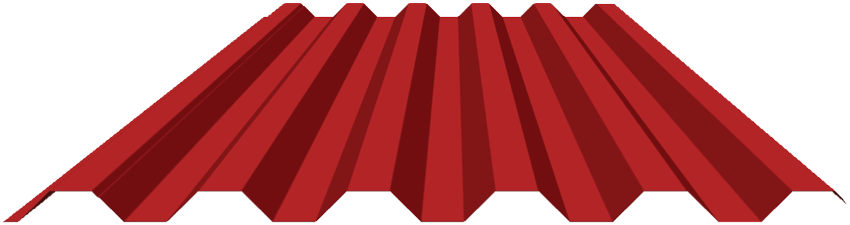

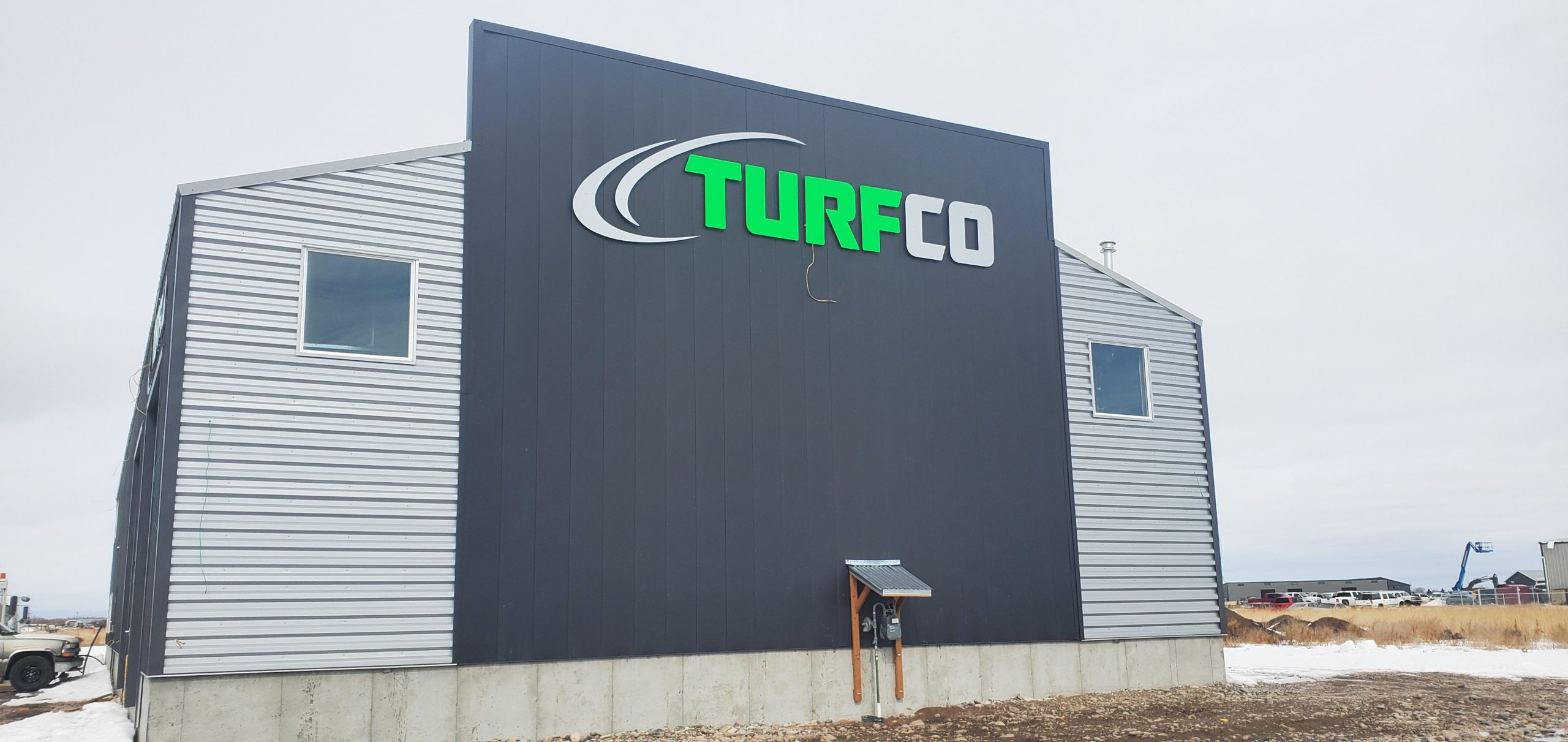

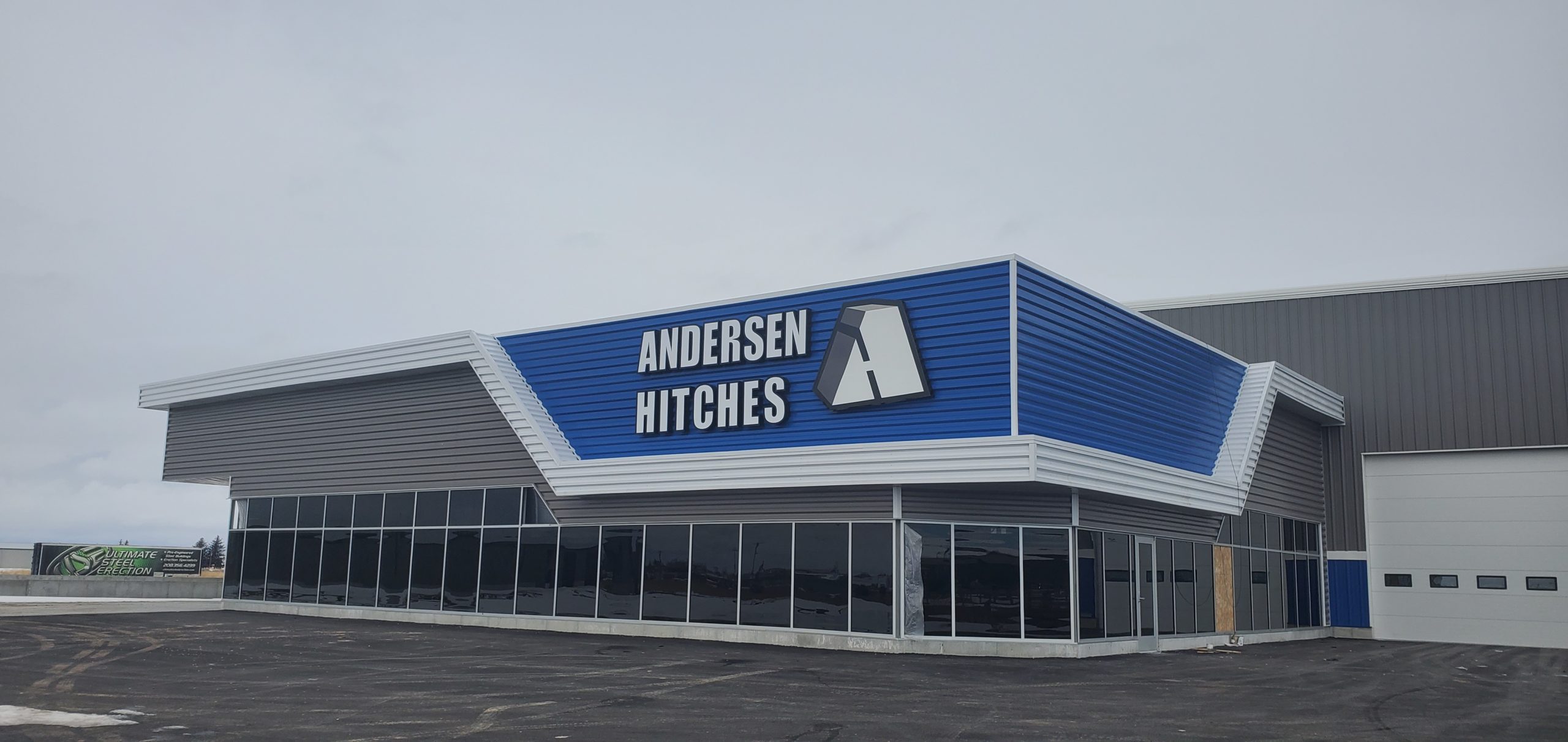

7.2 Ultra Box Metal Roofing Panels
*Certain colors may be subject to an order minimum and longer lead time
Panel Color Options
22 Gauge
Core-Ten AZP Raw (Sheffield)
Almond (CMG)
Bone White (CMG)
Charcoal Gray (Sheffield and CMG)
Dark Bronze (Sheffield and CMG)
Hartford Green (Sheffield and CMG)
Mansard Brown (Sheffield and CMG)
Matte Black (Sheffield and CMG)
Medium Bronze (Sheffield and CMG)
Sandstone (Sheffield Metals)
Sierra Tan (Sheffield Metals and CMG)
Slate Gray (Sheffield and CMG)
Core Ten A606 (Flatiron Steel)
24 Gauge
Aged Copper (Sheffield and CMG)
Almond (CMG)
Ash Gray (Sheffield and CMG)
Bone White (CMG)
Bright White (CMG)
Burgundy (Flatiron Steel)
Burnished Slate (CMG)
Champagne (CMG)
Charcoal Gray (Sheffield and CMG)
Cityscape (CMG)
Classic Green (CMG)
Colonial Red (Sheffield)
Copper Penny (Flatiron Steel and CMG)
Copper-Ten Raw (Sheffield)
Core-Ten AZP Raw (Sheffield)
Dark Bronze (Sheffield and CMG)
Deep Black (CMG)
Dove Gray (Sheffield)
Evergreen (Sheffield)
Galv-Ten Raw (Sheffield)
Private: Gotham Patina (Low Gloss/Low Sheen)
Private: Gun Metal(Low Gloss/Low Sheen)
Hartford Green (Sheffield and CMG)
Hemlock Green (Sheffield and CMG)
Mansard Brown (Sheffield and CMG)
Matte Black (Sheffield and CMG)
Medium Bronze (Sheffield and CMG)
Musket Gray (CMG)
Patina Green (Sheffield)
Pre-Weathered Galvalume (Sheffield)
Regal Blue (Sheffield)
Regal Red (Sheffield and CMG)
Regal White (Sheffield)
Royal Blue (CMG)
Sandstone (Sheffield Metals)
Sierra Tan (Sheffield Metals and CMG)
Silver (Sheffield Metals and CMG)
Slate Blue (Sheffield and CMG)
Slate Gray (Sheffield and CMG)
Solar White (Sheffield)
Stone White (Sheffield and CMG)
Surrey Beige (Sheffield)
Teal (CMG)
Terra Cotta (Sheffield and CMG)
Vintage (Sheffield and CMG)
Weathered Zinc (CMG)
Western Rust (CMG)
26 Gauge
Almond (CMG)
Ash Gray (Sheffield and CMG)
Black (Flatiron Steel)
Bone White (CMG)
Burgundy (Flatiron Steel)
Burnished Slate (CMG)
Charcoal Gray (Sheffield and CMG)
Classic Green (CMG)
Colonial Red (Sheffield)
Copper Penny (Flatiron Steel and CMG)
Dark Bronze (Sheffield and CMG)
Dark Gray (Flatiron Steel)
Deep Black (CMG)
Dove Gray (Sheffield)
Evergreen (Sheffield)
Hartford Green (Sheffield and CMG)
Mansard Brown (Sheffield and CMG)
Matte Black (Sheffield and CMG)
Medium Bronze (Sheffield and CMG)
Musket Gray (CMG)
Private: Pebble Clay
Regal White (Sheffield)
Sandstone (Sheffield Metals)
Sierra Tan (Sheffield Metals and CMG)
Slate Blue (Sheffield and CMG)
Slate Gray (Sheffield and CMG)
Terra Cotta (Sheffield and CMG)
Testing
UL 580 Wind Uplift (Class 90)
UL 2218 Class 4 Hail Impact
UL 790 Class A Fire Rating
Fastener Guide
- #10 Woodfast screws are designed for use with dimensional lumber
- #14 Wafer screws are designed for use with plywood sheeting, OSB, and wafer wood (7/16” minimum thickness)
- #12 Tek Screws are designed to be used with structural steel up to 3/16” in thickness
Fastener Application
Screws are to be applied in the middle of every other trough and then on both sides of the rib at each overlap of the panels, installed not more than 5’0” up the panel. At eaves and panel end laps, use a double screw pattern, and fasten into the middle of every trough. On all roofing applications, Mastic Tape must be applied between every panel at the side lap with Stitch Screws installed every 1’0” up the panel.
Please Note: It is the responsibility of the builder to ensure that purlins are adequately spaced to meet specific engineering requirements.

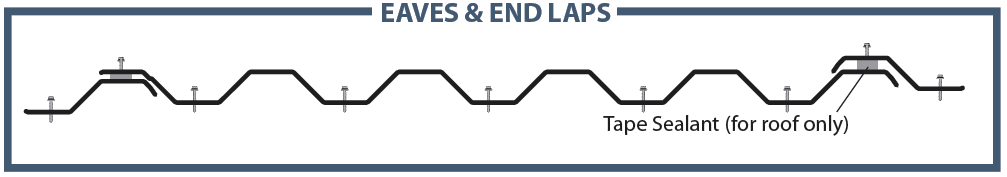

Screw Patterns
