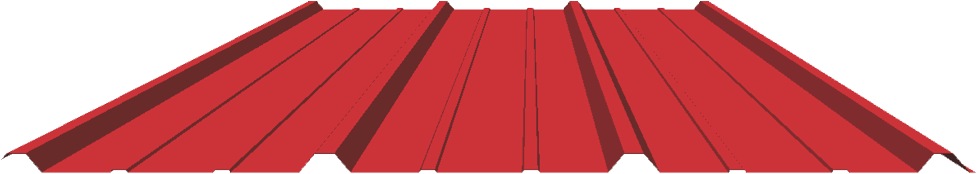

PBR Metal Roofing Panels

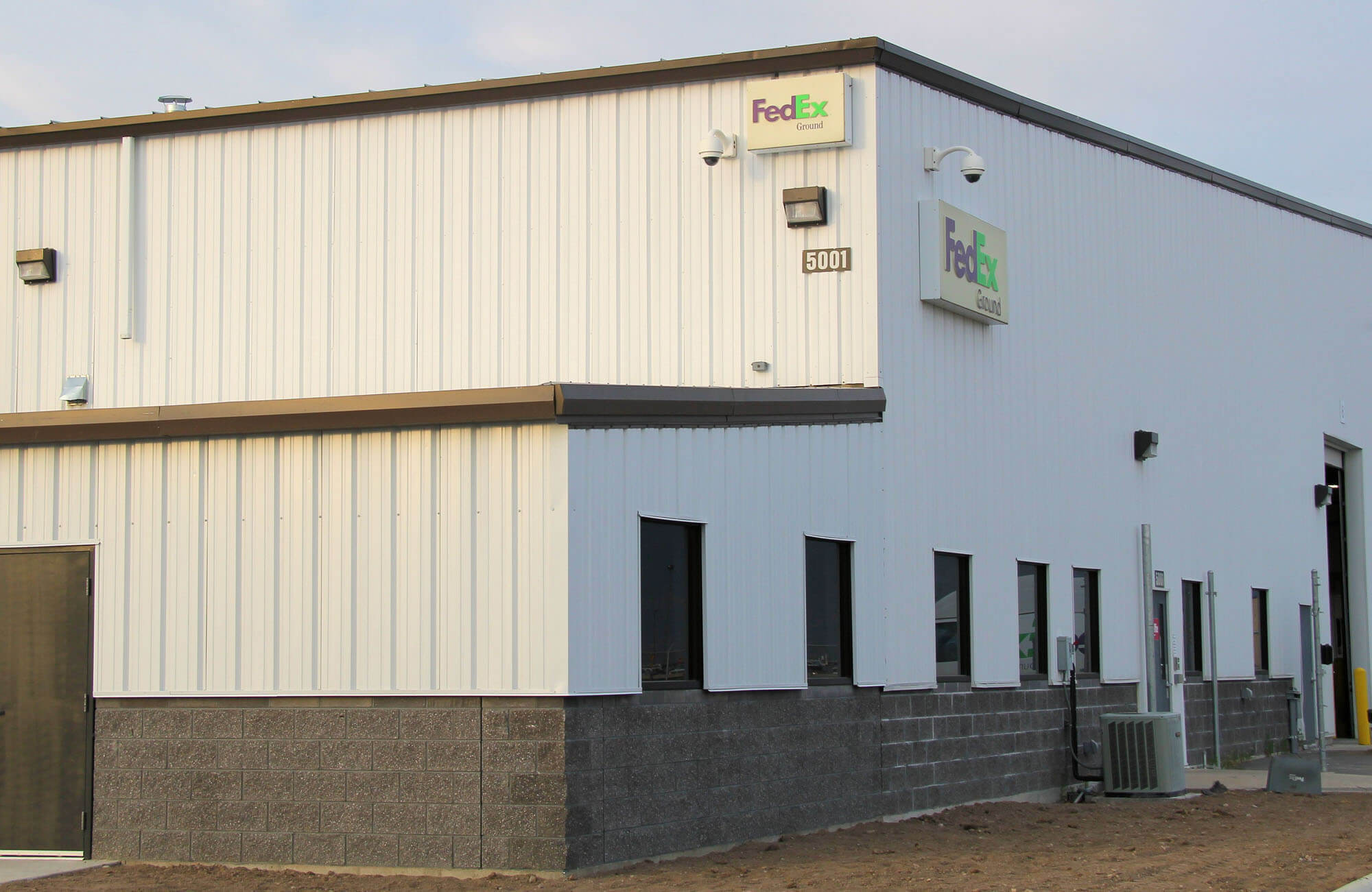

This is a sturdy, commercial grade product that can free-span between purlins up to 5 feet, making it a standard workhorse for many metal buildings and commercial facilities.
PBR orders are produced usually within just 3 days and can be picked up at either one of our locations at your convenience or delivered (additional cost apply).
Click here for Product Information, Installation Guide, Trim Profile
*Certain colors may be subject to an order minimum and longer lead time. Flatiron Steel recommends obtaining a color chip prior to placing an order. Please contact your Flatiron Steel representative to learn more.
Panel Color Options
26 Gauge *Stock Colors
24 Gauge *Stock Colors
24 Gauge *Special Order (may take extra time and minimum 1,200 linear feet)
24 Gauge (Sheffield and CMG)
24 Gauge (Drexel Metals)
Testing
UL 580 Wind Uplift (Class 90)
UL 2218 Class 4 Hail Impact
UL 790 Class A Fire Rating
Fastener Guide
- #10 Woodfast screws are designed for use with dimensional lumber
- #14 Wafer screws are designed for use with plywood sheeting, OSB, and wafer wood (7/16” minimum thickness)
- #12 Tek Screws are designed to be used with structural steel up to 3/16” in thickness
Fastener Application

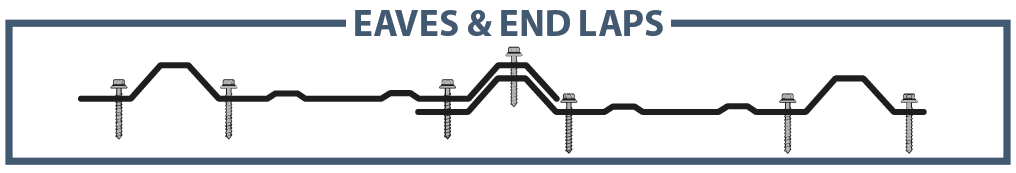

Screws are to be applied next to every rib and then up the panel, no more than 2’0”. On low slope roofs, Mastic Tape must be applied between the panel side laps with Stitch Screws installed every 1’0” up the panel. **At the eave or end laps, a double screw pattern should be used with screws applied to both sides of the rib**
**At the eave or end laps, a double screw pattern should be used with screws applied to both sides of the rib*

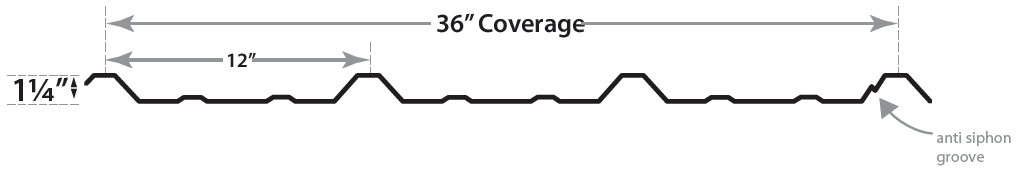

Panel Characteristics
- Exposed fastener
- 36” wall and roof coverage
- 12” on center rib spacing, 1.25” rib height
- Watertight siphon groove on the under lap rib, 5 degree over bend on overlap leg
- Manufactured from 80,000ksi minimum tensile strength steel
- Any length is available from 3’0” to 50’0”, panels will be cut to the nearest ½”
- Produced with a Galvalume® substrate

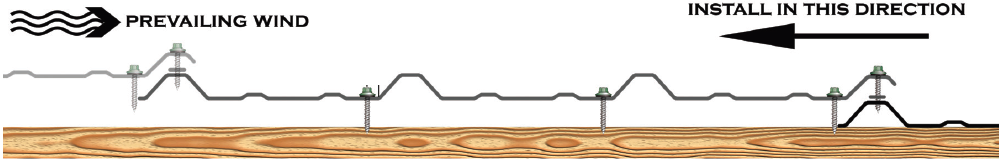

Screw Patterns
